Adding and Rotating Molecules in Crystals¶

This notebook demonstrates how to use the add_structure_position and rotate_structure functions to add a molecule at a certain position and rotates it around a certain point. Additionally, a whole sub structure will be rotated around a given vector.

Loading Framework and Molecule¶

To begin, we load the perovskite framework and the molecule from .xyz files using the Structure class from aim2dat.

• Load the framework “PBI3” from PBI3.xyz via from_file with the Structure class.

• Load the molecule “CN2H5” from CN2H5.xyz via from_file with the Structure class.

[1]:

from aim2dat.strct import Structure

framework = Structure.from_file("files/strc/PBI3.xyz")
molecule = Structure.from_file("files/strc/CN2H5.xyz")

Example 1: Adding a Molecule into the Framework¶

In this example, we insert a molecule into the structure at a specified position. The molecule is placed in the framework while preserving its structure. The coordinates provided for the insertion correspond to the center of the framework.

[2]:

from aim2dat.strct.ext_manipulation import add_structure_position

position = [3.176188, 3.244215, 3.25149] # Chosen center of the framework (in Å)
structure = add_structure_position(framework, position, molecule)

Below is a visualization of the framework with the newly added molecule. We apply a 45-degree rotation for better clarity.

[3]:

import matplotlib.pyplot as plt
from ase.visualize.plot import plot_atoms

fig, ax = plt.subplots()
plot_atoms(structure.to_ase_atoms(), ax, radii=0.3, rotation=('45x,45y,0z'))

[3]:

<Axes: >

Example 2: Rotate a Molecule in a structure¶

In this case, we demonstrate to rotate the new added molecule around its center by 90 degrees along the x-axis. The default rotation center is located at the midpoint of the atomic positions within the chosen molecule but can be modified. We need to specify the indices of the atoms we want to rotate.

[4]:

from aim2dat.strct.ext_manipulation import rotate_structure

# Define rotation parameters
selected_atoms = [4, 5, 6, 7, 8, 9, 10, 11]  # Indices of the molecule to rotate
rotation_angles = [90, 0, 0]  # Rotation of 90 degrees around the x-axis

# Apply rotation
rot_struct = rotate_structure(
    structure,
    site_indices=selected_atoms,
    angles=rotation_angles
)
rot_strct = rotate_structure(
    structure,
    angles = [90,0,0],
    site_indices = [4, 5, 6, 7, 8, 9, 10, 11],
)

This molecule is now rotated in the framework shown down below:

[5]:

fig, ax = plt.subplots()
plot_atoms(rot_struct.to_ase_atoms(), ax, radii=0.3, rotation=('45x,45y,0z'))

[5]:

<Axes: >

Example 3: Rotating a Substructure in a Crystal¶

In this case, we demonstrate how to rotate each linker molecule in the MOF-5 structure by 90 degrees.

For better visualization, we use the conventional unit cell of the MOF-5 structure, allowing us to observe the changes clearly.

[6]:

MOF5 = Structure.from_file("files/strc/Zn_MOF5_H_conv.xyz")

Now we can identify the linkers by setting “Zn” as the start and endpoint while excluding non-linker elements, “Zn” and “O”.

[7]:

from aim2dat.strct.ext_analysis import calc_molecular_fragments

fragments = calc_molecular_fragments(
    MOF5,
    exclude_elements=["Zn", "O"],
    end_point_elements = "Zn",
    method="atomic_radius",
    radius_type="chen_manz",
)

With this information, we identify each connection pair and determine their connecting vector.

[8]:

import numpy as np

pairs = []
rotation_vectors = []

# Find the furthest connected atoms in each fragment
for frag in fragments:
    max_dist = 0
    furthest_pair = None
    furthest_vec = None

    # Iterate over all atom pairs in the fragment
    for idx1, pos1 in zip(frag["site_attributes"]["parent_indices"], frag["positions"]):
        for idx2, pos2 in zip(frag["site_attributes"]["parent_indices"], frag["positions"]):
            if idx1 >= idx2:
                continue

            # Compute distance between two atoms
            dist = np.linalg.norm(np.array(pos1) - np.array(pos2))
            if dist > max_dist:
                max_dist = dist
                furthest_pair = (idx1, idx2)
                furthest_vec = np.array(pos2) - np.array(pos1)

    # Store the furthest atom pair and the rotation vector
    if furthest_pair:
        pairs.append(furthest_pair)
        rotation_vectors.append(furthest_vec)

Now we can iterate through all fragments and rotate them by 90 degrees. For this, we copy the original structure, so it will not be manipulated. In this case, we do not change the label, since each iteration would change each time.

[9]:

from aim2dat.strct.ext_manipulation import rotate_structure

# Make a copy of the structure before applying rotations
rot_struct = MOF5.copy()

# Apply rotation to each linker fragment
for pair, frag, rot_vec in zip(pairs, fragments, rotation_vectors):
    rot_struct = rotate_structure(
        rot_struct,
        site_indices=frag["site_attributes"]["parent_indices"],
        angles=90,  # Degrees
        vector=rot_vec,  # Normalized rotation vector
        origin=MOF5.get_positions()[pair[0]],  # Use one of the connected atoms as origin
        change_label=False,
        wrap=True  # Ensures atoms remain in unit cell
    )

Now we can compare before and after the rotation.

[10]:

fig, ax = plt.subplots(nrows=1, ncols=2, figsize=(10, 5))

plot_atoms(MOF5.to_ase_atoms(), ax[0], radii=0.3, rotation=('45x,45y,0z'))
ax[0].set_title("Original MOF-5", fontsize=12)

plot_atoms(rot_struct.to_ase_atoms(), ax[1], radii=0.3, rotation=('45x,45y,0z'))
ax[1].set_title("Rotated Structure", fontsize=12)

plt.tight_layout()
plt.show()

Example 4: Adding an oxygen cluster randomly on Graphene¶

In this example, we insert an oxygen atom on top of a graphene structure. At first, we need to load the structures from the file.

[11]:

Graphene = Structure.from_file("files/strc/4x4-SC_graphene.in")
oxygen = Structure.from_file("files/strc/O.xyz")

We will use the function add_structure_random and with the keyword dist_threshold we can set the distances. In this example the oxygen should have a minimum length of 0.8~A and a maximum length of 2~A from the structure.

[12]:

from aim2dat.strct.ext_manipulation import add_structure_random

Grapheneoxyde = add_structure_random(
    structure=Graphene,
    guest_structure=oxygen,
    dist_threshold=[.8,2]
)

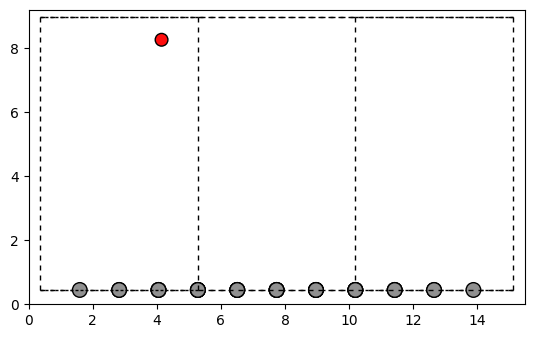

fig, ax = plt.subplots()
plot_atoms(Grapheneoxyde.to_ase_atoms(), ax, radii=0.3, rotation=('-90x,0y,0z'))

[12]:

<Axes: >

Next, we would like to have an oxygen close to the other oxygen to build a cluster. Thus, we define a dict with different distances for the oxygen and the carbon in dist_threshold and use our output structure from above as input.

[13]:

Graphenedioxyde = add_structure_random(
    structure=Grapheneoxyde,
    guest_structure=oxygen,
    dist_threshold={("C", "O"): [.8,2], ("O", "O"): [1,1.5]}
)

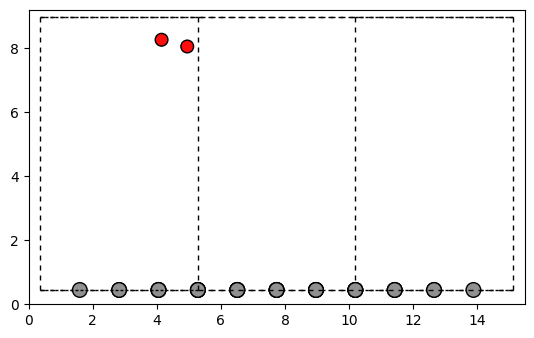

fig, ax = plt.subplots()
plot_atoms(Graphenedioxyde.to_ase_atoms(), ax, radii=0.3, rotation=('-90x,0y,0z'))

[13]:

<Axes: >

To make life a little simpler, we can use the StructureOperations class. To import a structure into the class, we need to add a label to the structure first and then we can perform the same operation add_structure_random 14 times in a row to get an output structure. We feed the pipeline in form of a list with

• 1. the method used,

• 2. the key word arguments for the method, and

• 3. the number of times the method should be applied.

Then, we run the pipeline.

[14]:

from aim2dat.strct import StructureOperations

Graphene.label = "Graphene"

strct_op = StructureOperations([Graphene])
strct_op.pipeline = [[
    "add_structure_random",
    {"guest_structure": oxygen, "dist_threshold": {("C", "O"): [.8,2], ("O", "O"): [1,1.5]}},
    14
]]
strct_collect = strct_op.run_pipeline()

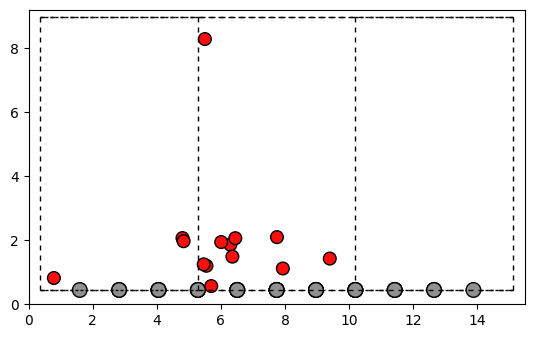

fig, ax = plt.subplots()
plot_atoms(strct_collect[0].to_ase_atoms(), ax, radii=0.3, rotation=('-90x,0y,0z'))

[14]:

<Axes: >
